Paper Roll Clamp

Name: Paper Roll Clamp
Brand: MY SHOP
Price: 5000.00 USD
Availability: InStock
Rating: 5 (1 reviews)

What is a paper roll clamp?

A paper roll clamps is an indispensable tool in industries handling paper products, combining engineering precision with operational safety to protect valuable cargo and boost productivity.

Common applications of a paper roll clamp?

Paper Mills: Moving rolls between production stages and storage.

Printing Houses: Handling rolls during prepress and press operations.

Logistics and Warehousing: Loading/unloading trucks, trains, and ships, as well as organizing storage.

Converting Facilities: Transporting rolls for further processing into products like cardboard or tissues.

Choose a suitable Paper Roll Clmap for your forklift:

Capacity:

1200kg

1700kg

2000kg

2300kg

3400kg

Roll Range:

330-1150mm

320-1450mm

200-1350mm

200-1530mm

650-1850mm

Small Arm:

Adjustable

Fixed

Other Requirement:

Rubber Pad

Class 2/3 Interchangeable

Class 3/4 Interchangeable

GET A QUOTE

Description

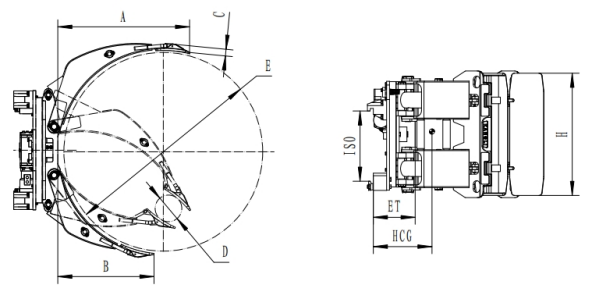

Capacity	Roll Range	Model	Class	Long Arm Length	Short Arm Length	Long Arm Thickness	Short Arm Type	Weight	Effective Thickness	Horizontal Center of Gravity
(kg)	D-E (mm)			A (mm)	B (mm)	C (mm)		(kg)	ET (mm)	HCG (mm)
1200	Ф330-1150	RCF-15M-A01	ISO 2	1026	665	45	fixed	410	152	310
1200	Ф300-1380	RCF-15M-A02	ISO 2	988	665	45	fixed	430	152	332
1200	Ф320-1450	RCF-15M-A03	ISO 2	947	665	45	fixed	440	152	338
2000	Ф200-1350	RCA-25M-B01	ISO 3	895	655	45	adjustable	700	237	225
2000	Ф450-1350	RCF-25M-B01	ISO 3	895	655	45	fixed	680	237	225
2000	Ф200-1600	RCA-25M-B02	ISO 3	1030	745	45	adjustable	735	237	240
2000	Ф500-1600	RCF-25M-B02	ISO 3	1030	745	45	fixed	715	237	240
2000	Ф200-1430	RCA-25M-B03	ISO 3	940	685	45	adjustable	710	237	230
2000	Ф480-1430	RCF-25M-B03	ISO 3	940	685	45	fixed	690	237	230
2000	Ф200-1530	RCA-25M-B04	ISO 3	1015	725	45	adjustable	725	237	235
2000	Ф470-1530	RCF-25M-B04	ISO 3	1015	725	45	fixed	705	237	235
1700	Ф350-1850	RCA-35M-B01	ISO 3	1182	930	45	adjustable	770	237	245
1700	Ф650-1850	RCF-35M-B01	ISO 3	1182	930	45	fixed	750	237	245
2500	Ф200-1530	RCA-50M-B/C01	ISO 3/4	1117	791	45	adjustable	800	237	240
2500	Ф450-1530	RCF-50M-B/C01	ISO 3/4	1117	791	45	fixed	780	237	240
3500	φ250-1520	RCA-50M-C02	ISO 4	1000	670	65	adjustable	1308	218	350
3500	φ610-1520	RCF-50M-C02	ISO 4	1000	670	65	fixed	1296	218	350
3400	φ360-1830	RCA-50M-C03	ISO 4	1105	815	85	adjustable	1395	200	338
3400	φ660-1830	RCF-50M-C03	ISO 4	1105	815	85	fixed	1380	200	338

1. Powerful hydraulic motor and Heavy duty gearbox provide superior service life.
2. All clamps are designed for easy maintenance with less service cost.
3. A variety of contact pads and accessories are available for your different workingconditions.
4. 2 pieces of truck auxiliary valves arenecessary. 140bar≤ Working Pressure ≤180bar.
