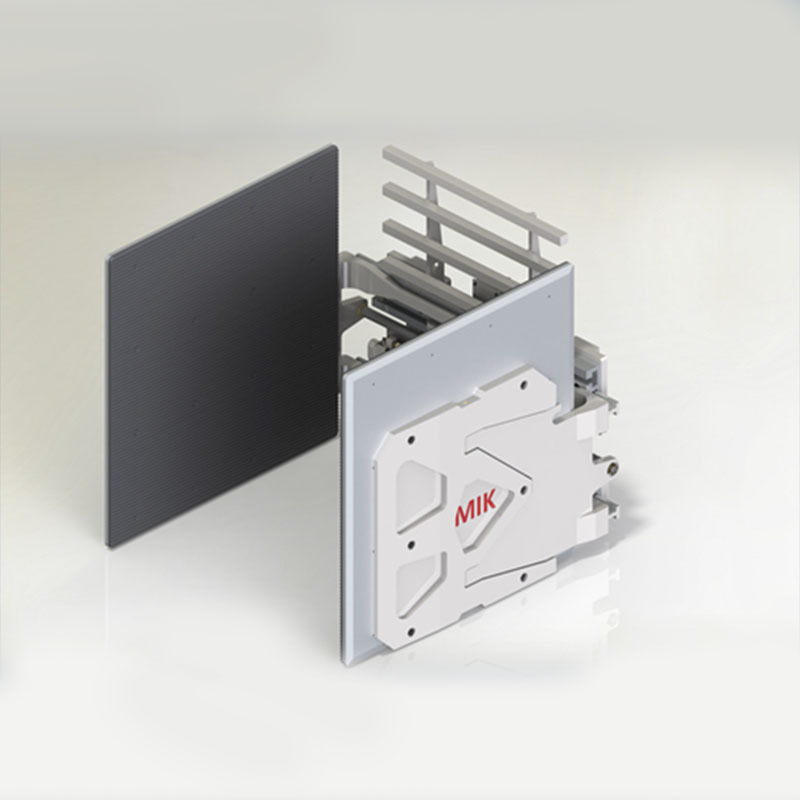

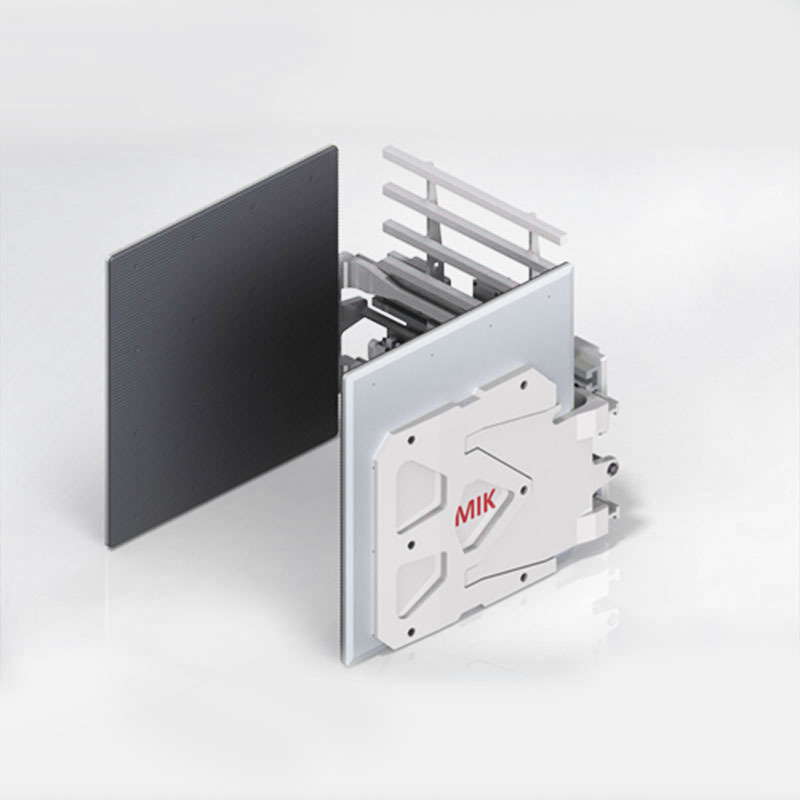

Also known as white appliance clamp, appliance clamp or white goods clamp, it is specially designed for the safe and efficient handling of large, boxed household appliances such as refrigerators, washing machines, dryers, ovens, and dishwashers.
This clamp is an essential tool in the entire supply chain for large household appliances:
1. Appliance Manufacturing Plants: Moving finished, boxed products from the production line to the warehouse.
2. Distribution Centers and Warehouses: For stacking and destacking appliances in high-bay storage and for order picking.
3. "Big-Box" Stores: Unloading delivery trucks and moving appliances to the sales floor.
4. Logistics and Transportation Hubs: Loading and unloading appliances from shipping containers and trailers.
1. Prevents Product Damage: This is the #1 benefit.
Crush Prevention: The wide pads and controlled pressure prevent the cardboard box from being crushed or deformed, which could dent or damage the appliance inside.
Surface Protection: The soft pad material prevents scuffs, tears, and scratches on the box's surface, maintaining the product's retail appearance.
2. Eliminates the Need for Pallets:
Appliances are often shipped and stored without pallets to save space and cost. The clamp makes this possible. It allows for much tighter loading in trucks and shipping containers, maximizing space and reducing transportation costs.
3. Enhances Safety and Stability:
Cradling the load from both sides creates a very stable and secure grip, far superior to trying to use standard forks underneath an unstable, pallet-less box. It significantly reduces the risk of appliances tipping or falling during transport.
4. Improves Handling Efficiency:
It is much faster and safer to clamp a large appliance than to manually load it onto a pallet or use straps.

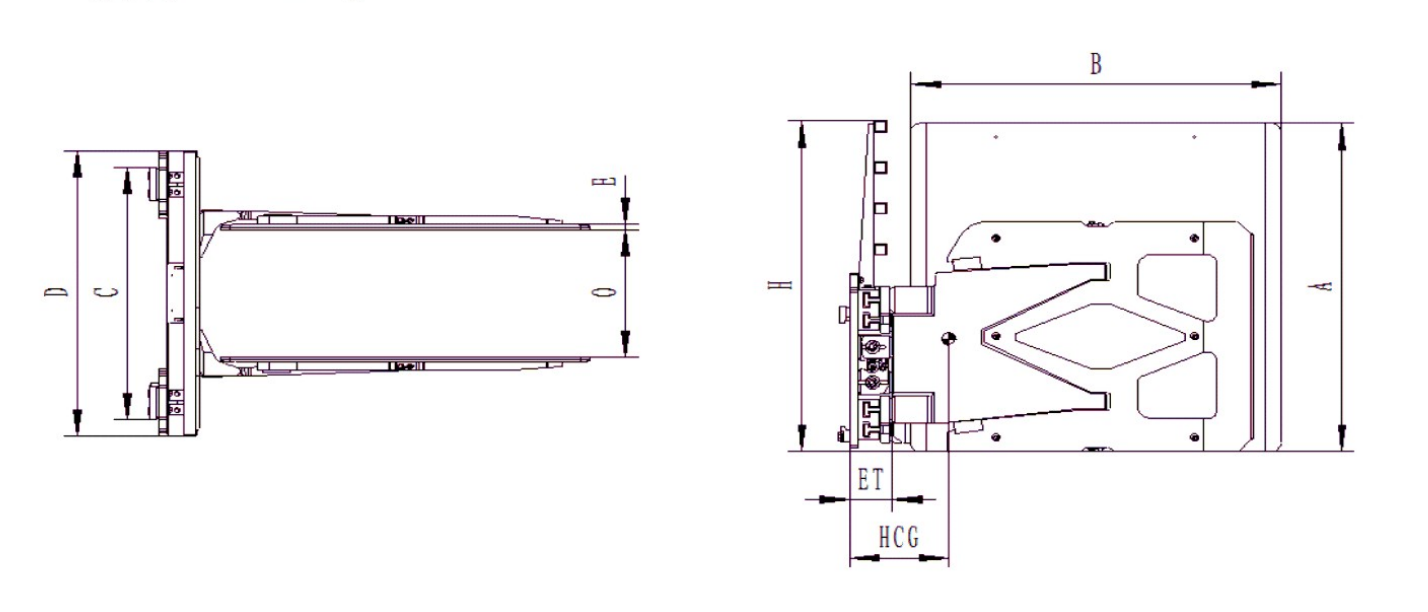

Specifications
| Capacity@ Load Center |
Model | Mounting Class |
Opening Range |
Arm Length× Height× Thickness |
Overall Width |
Weight | Effective Thickness |
Horizontal Center of Gravity |
| (kg@mm) | O (mm) | B×A×E (mm) | D (mm) | (kg) | ET (mm) | HCG (mm) | ||
| 1500@600 | MCC-25M-A03 | ISO 2A | 560-1930 | 1200×1220×90 | 1040 | 720 | 130 | 480 |
| 1400@700 | MCC-25M-A05 | ISO 2A | 560-1930 | 1400×1220×90 | 1040 | 810 | 130 | 500 |
| 1400@700 | MCC-25M-A21 | ISO 2A | 500-2440 | 1400×1220×90 | 1600 | 1050 | 130 | 520 |
